Description
Condition: NEW
Manufacturer Part #: 900-9D3C6-00CV-GA0

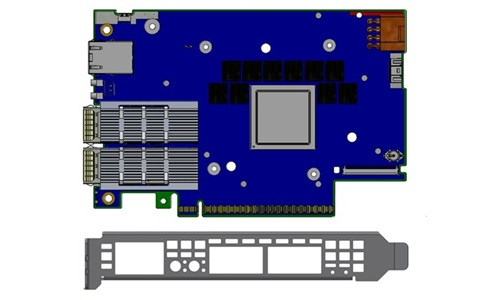

NVIDIA BlueField-3 B3220SH E-Series No heatsink FHHL Storage Controller - 200GbE (default mode) / NDR200 IB, Dual-port QSFP112, PCIe Gen5.0 x16 with x16 PCIe extension option, 16 Arm cores, 48GB on-board DDR, integrated BMC, Crypto Enabled, Secure Boot
The NVIDIA BlueField-3 data processing unit (DPU) Controller is the 3rd-generation data center infrastructure-on-a-chip that enables organizations to build software-defined, hardware-accelerated IT infrastructures from cloud to core data center to edge. With 200Gb/s Ethernet or NDR200 200Gb/s InfiniBand network connectivity, BlueField-3 DPU Controller offloads, accelerates, and isolates software-defined networking, storage, security, and management functions in ways that profoundly improve data center performance, efficiency, and security. Providing powerful computing, and a broad range of programmable acceleration engines in the I/O path, BlueField-3 is perfectly positioned to address the infrastructure needs of the most demanding applications, while delivering full software backward compatibility through the NVIDIA DOCA software framework.
BlueField-3 DPU Controllers are highly optimized for NVMe storage systems, Network Functions Virtualization (NFV), Cloud and Machine Learning workloads. BlueField-3 integrates all the discrete components of a storage system appliance into a single chip making it the premier solution for building Just-a-Bunch-Of-Flash (JBOF) systems, All-Flash-Array and storage appliances for NVMe over Fabrics. With an integrated NVMe-oF and NVMe/TCP offload accelerator, the BlueField-3 DPU Controller has a superior performance advantage over existing JBOF systems, significantly reducing storage transaction latency, while increasing IOPs (I/O operations per second).
BlueField-3 IC: BlueField-3 E-Series - 16 Arm-Cores - 505 MHz/2000MHz | Crypto Enabled with integrated BMC
Physical
Single-Slot FHHL Card Dimensions: 111.15mm x 167.65mm
Interfaces
PCI Express Interface: Gen 5.0 SERDES @ 32.0GT/s, 16 lanes (4.0, 3.0, 2.0 and 1.1 compatible) | Optional: Additional PCIe x16 Gen 5.0 @ SERDES 32GT/s through the PCIe auxiliary passive card and Cabline SA-II Plus harnesses
On-Board Memory: Dual-channel with 20 DDR5 + ECC (128bit + 16bit ECC) for a total of 48GB @ 5200MT/s | 40GB pSLC eMMC memory + 128GB SSD
Networking Connector: Dual-port QSFP112 (copper and optical)
Data Rate
InfiniBand: NDR200/HDR/HDR100/EDR/FDR/SDR
Ethernet (Default Speed): 200/100/50/25/10 Gb/s
Protocol Support
InfiniBand: IBTA v1.5a Auto-Negotiation: NDR200 ( 2 lanes x 100Gb/s per lane ) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane)
Ethernet: 200GAUI-4 C2M, 200GAUI-2 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2 , 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI
Electrical and Thermal Specifications
Voltage: 12V
Environmental
Temperature: Operational 0°C to 55°C | Non-operational -40°C to 70°Ca
Humidity: Operational 10% to 85% relative humidity | Non-operational 10% to 90% relative humidity
Altitude (Operational): 3050m
Regulatory
Safety: CB / cTUVus / CE
EMC: CE / FCC / VCCI / ICES / RCM
RoHS: RoHS compliant
