Description
Condition: NEW
Manufacturer Part #: C9300L-48P-4G-A

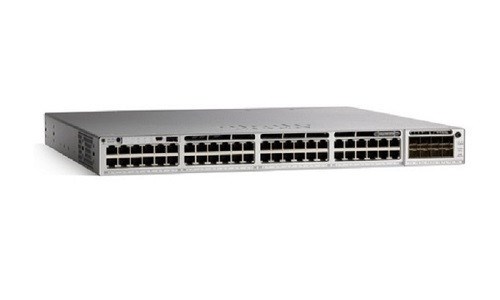

Cisco Catalyst 9300 Fixed Uplink Switch with base Network Advantage license - stackable 48 port PoE+ switch (48 x 1G copper ports; with 4 x 1G SFP fixed uplinks) - has 2 FRU power supply module slots (ships with 1 default power supply); 715 watt default primary AC power supply is PWR-C1-715WAC-P with a PoE budget of 505 watt - comes with 3 field-replaceable fans and support (N+1) redundancy - Supports the StackWise-320 stacking option
The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. These switches are also equiped with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE+ ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
Device Type: Switch - 48 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE): PoE+
PoE Budget: 505 W
Performance: Switching capacity: 104 Gbps | Stacking bandwidth: 320 Gbps | Switching capacity with stacking: 424 Gbps | Forwarding rate: 77.38 Mpps | Forwarding rate with stacking: 315.48 Mpps
Capacity: IPv4 routes: 32000 | IPv6 routes: 16000 | Multicast scale: 8000 | QoS scale entries: 5120 | ACL scale entries: 5120 | VLANs supported: 4094 | FNF entries: 64000 | Switched virtual interfaces (SVIs): 1000 | Packet buffer size: 16 MB | Virtual networks: 64
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MPLS, MSTP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG
Features: Non-Stop Forwarding (NSF), Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Location ID Separation Protocol (LISP), Blue Beacon LED, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Protocol Independent Multicast (PIM), First Hop Security (FHS), Audio Video Bridging (AVB), PVLAN support, Graceful Insertion and Removal (GIR) mode, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6
Power: AC 120/230 V (50 - 60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.5 in x 1.7 in x 16.1 in
Weight: 15.5 lbs
