Description
Condition: NEW
Manufacturer Part #: MS120-48LP-HW
End of Life / Last Day Of Support: March 28, 2030
Replacement Part: MS130-48P-HW

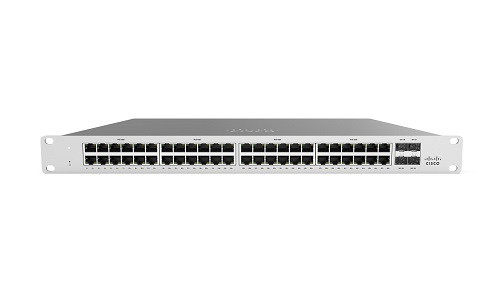

Cisco Meraki Cloud Managed MS120 Switch - Total 52 ports - 48 x GbE PoE Ports with 4 x 1GbE SFP Fixed Uplinks - 370 watt PoE budget - Fixed internal power supply - Rack mountable
Cisco Meraki MS120 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of branch and campus deployments, and is ready to support future wireless infrastructure deployments across a variety of different environments.
Device Type: Switch - 48 ports - managed
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 (PoE) + 4 x Gigabit SFP
Power Over Ethernet (PoE): PoE
PoE Budget: 370 W
Performance: Switching capacity: 104 Gbps | Forwarding rate: 77.38 Mpps
Capacity: VLANs supported: 4094 | MAC forwarding entries: 32000
Jumbo Frame Support: 9578 bytes
Remote Management Protocol: SNMP
Features: Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), SMS alert, STP Root Guard, DHCP client, crossover detection, Single Sign-On (SSO) support, Role-Based Access Control (RBAC), Cisco Discovery Protocol, STP BPDU Guard, Zero-touch provisioning (ZTP), DSCP to CoS Mutation
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP)
Power: AC 120/230 V (47 - 63 Hz)
Dimensions (WxDxH): 17.3 in x 13.4 in x 1.7 in
Weight: 9.63 lbs
